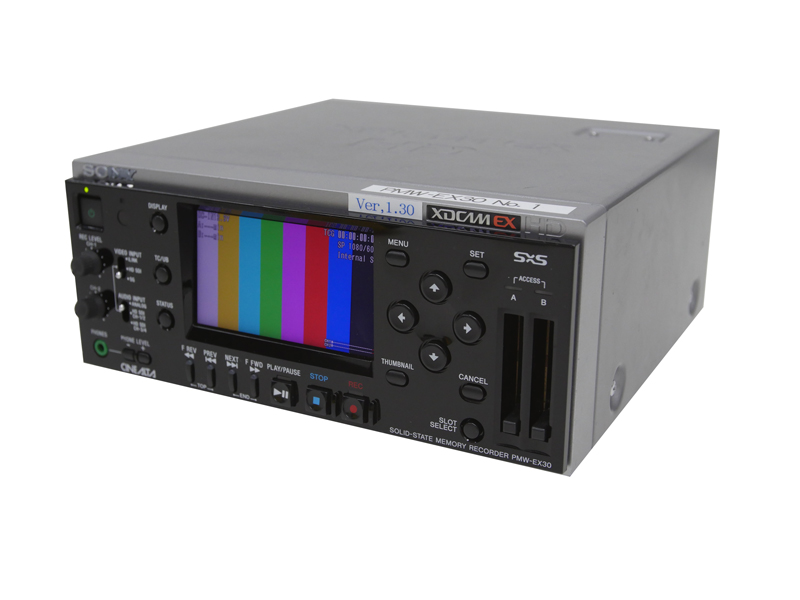

Sony PMW-EX30

Specifications:

GENERAL
- Mass: 2.0 kg / 4 lb 6 oz
- Dimensions (W x H x D) *1:
210 x 88 x 200 mm
8 3/8 x 3 1/2 x 7 7/8 inches

- Power Requirements: DC 12 V
- Power Consumption: Approx. 12 W
- Recording Format (Video):.
MPEG-2 Long GOP
HQ mode: VBR, maximum bit rate: 35 Mbps, MPEG-2 MP@HL
SP mode: CBR, 25 Mbps, MPEG-2 MP@H14

- Recording Format (Audio): Linear PCM (2 ch, 16-bit, 48-kHz)
- Recording Frame Rate:
NTSC setting:
. HQ mode: 1920 x 1080/59.94i, 29.97p *2 , 23.98p *2 , 1280 x 720/59.94p
. SP mode: 1440 x 1080/59.94i
PAL setting:
. HQ mode: 1920 x 1080/50i, 25p *2 , 1280 x 720/50p
. SP mode: 1440 x 1080/50i

- Recoding/Playback Time
HQ mode:
. Approx. 100 min with SBP-32 (32 GB) memory card
. Approx. 50 min with SBP-16 (16 GB) memory card
. Approx. 25 min with SBP-8 (8 GB) memory card
SP mode:
. Approx. 140 min with SBP-32 (32 GB) memory card
. Approx. 70 min with SBP-16 (16 GB) memory card
. Approx. 35 min with SBP-8 (8 GB) memory card

INPUT/ OUTPUT

- S-Video Output: Mini-DIN 4-pin (x1)
- SDI Input: BNC (x1), HD only
- SDI Output: BNC (x1), HD/SD selectable
