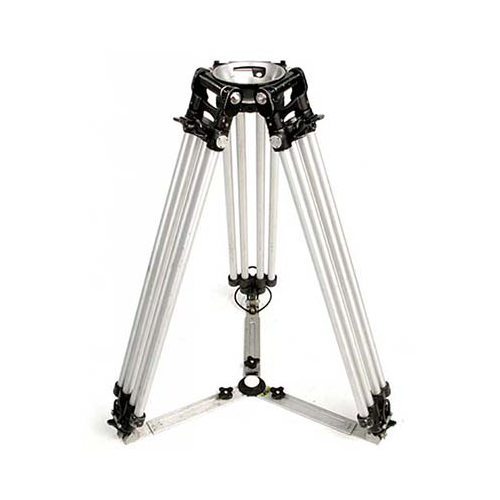

Ronford Baker Heavy Duty Tall - 150MM
- Head fittings:
Mitchell top plate supplied as standard.
150mm bowl can be supplied on request.
- Technical Specifications:
Materials and Finish
Castings are LM25 anodised, stove enameled black texture. Tubes are 1” dia x 16swg HE30TF alloy, polished and anodized, with nylon wipers and nylon locking pads. Stainless Steel spikes to feet, with rubber covers. Locking levers are anodized and stove enamelled black texture. All steel parts are hardened where necessary, and chrome plated.
- Height:
With legs spread at 1’6” (45.7cm): closed 3ft’ (91.4cm), fully extended 5’6” (167.6cm).
- Weight: 22lb (10kg).
- Spreader:
An infinitely adjustable spreader with a strong elastic clip-down device, which is secured in seconds. Made from high tensile anodized aluminium with large diameter locking hand-wheels to adjust length of spread; steel parts hardened and heavily chromium plated.
Dimensions (center to foot) minimum 1’5” (43cm), maximum 2’1” (64cm).
Weight 4lb 7oz (2kg).
- Short/Baby Tripod
As above, but height range from 1’8” (50.8cm) to 3’ (91.4cm)
Weight 18lb (8kg).
- Transit Cases Specification:
Moulded black grain AVS.
Dimensions 42” x 12” x 11” (105cm x 30cm x 27.5cm) standard.
26” x 12” x 11” (65cm x 30cm x 27.5cm) baby.
Weight 11lb (5kg) standard, 8lb (3.5kg) baby.
