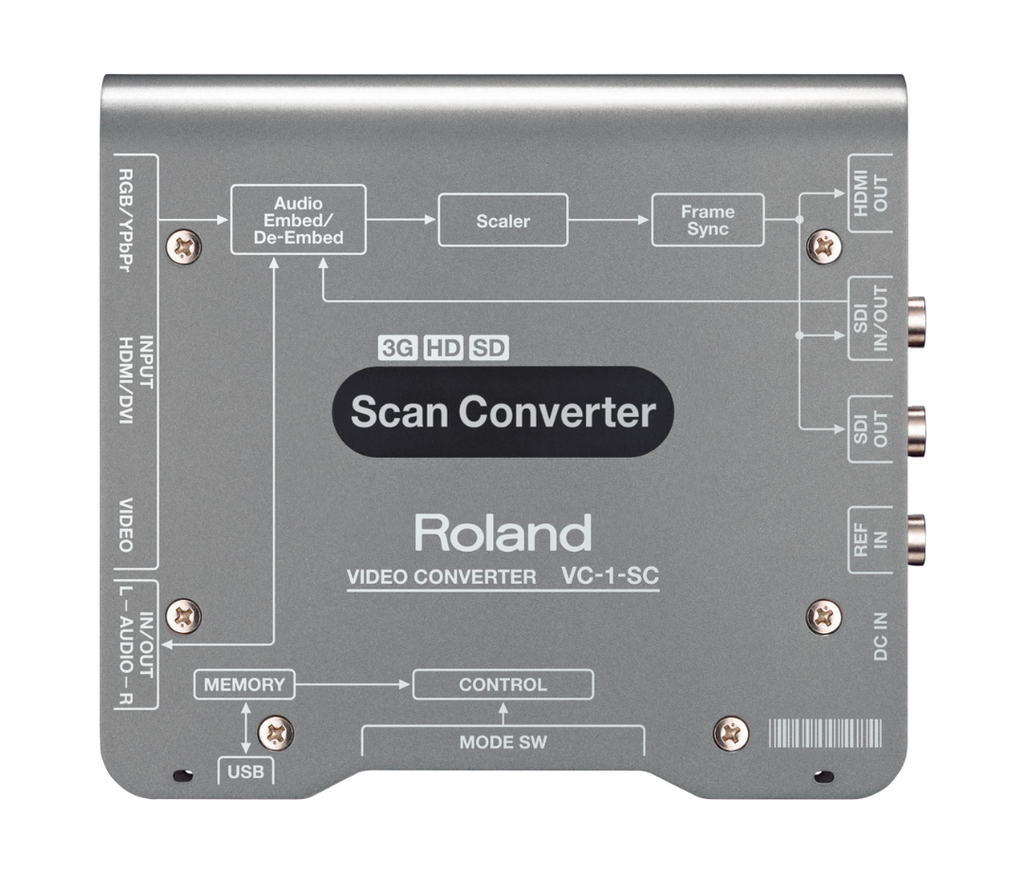

Roland VC-1-SC Scan Converter

- SDI:

Connector: BNC type x 1 (Combined use with SDI Out Connector)
Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C

- HDMI:

Connector: Type A (19 pins) x 1
Signal Standard: HDMI HDCP support (When an HDCP-applied signal is input, output from the SDI OUT connector is stopped)

- RGB/Component:

Connector: HD DB-15 type x 1
Signal Level: 1.0Vp-p (Y signal), 0.7Vp-p (R/G/B/Pb/Pr signals), 5VTTL (H/V signals)
Impedance: 75 ohms

- Composite:

Connector: BNC type x 1
Signal Level: 1.0 Vp-p (Y signal), 0.286 V-p (C signal (NTSC)), 0.3 V-p (C signal (PAL))
Impedance: 75 ohms

- Analog Audio:

Connector: RCA phono type x 1 pair (L/R) (Combined use with Analog Audio Out Connector)
Input Level: -6dBV
Maximum Input Level: +6dBV
Impedance: 22 k ohms

- Reference:

Connector: BNC type x 1
Impedance: 75 ohms
Signal Format: Black Burst, Bi-level, Tri-level
