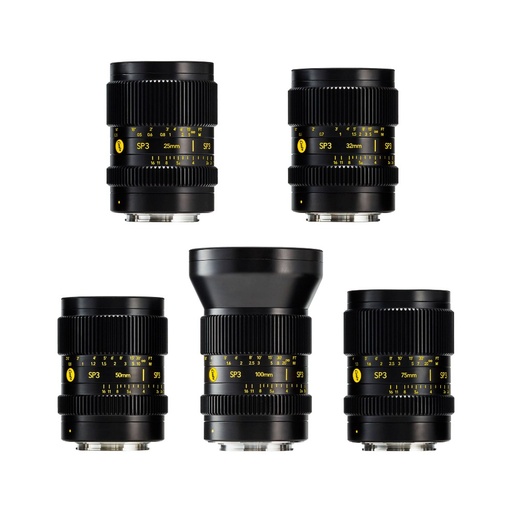

Cooke SP3 5-Lens set 25/32/50/75/100MM

SP3 Five-Set - RF MOUNT

The full five lens pack is supplied in a robust hard-shell carry case.

Format: Full Frame (S35 compatible)

Mount: Interchangeable:

- E (fitted)
- RF (available via registration)
- L (available as accessory)
- M (available April 2024)

Speed: T2.4

Scale: Dual Focus scales

Compatibility:

- Matched to Panchro/i Classic series
- SP3 has a standardised 0.8 MOD focus and iris drive gears. The 25mm to 75mm have a fixed common front diameter of 64mm; the 100m has a front diameter of 82mm

Focus Movement:

- Ergonomically designed for smooth and accurate travel, with a non-linear focus movement

Iris:

- SP3 features a nine-leaf module iris assembly

Aperture:

- All SP3 primes cover Full Frame and Super35 formats and provide full apertures of T2.4-T16.

Colour Balance:

- All SP3 prime lenses are colour balanced and colour matched – ensuring consistency across the series and are further matched to Panchro/i Classic FF.

Technical Specifications:

25mm

- Aperture: T2.4-T16
- Iris rotation: 78º
- Close focus: 250mm
- Focus rotation: 160º
- Length: 98mm
- Front diameter: 64mm
- Angle of view (FF): 81
- Angle of view (S35): 62
-Weight: 575g
- Filter thread: M58 x 0.75

32mm

- Aperture: T2.4-T16
- Iris rotation: 78º
- Close focus: 350mm
- Focus rotation: 160º
- Length: 94mm
- Front diameter: 64mm
- Angle of view (FF): 69
- Angle of view (S35): 50
-Weight: 520g
- Filter thread: M58 x 0.75

50mm

- Aperture: T2.4-T16
- Iris rotation: 78º
- Close focus: 500mm
- Focus rotation: 160º
- Length: 94mm
- Front diameter: 64mm
- Angle of view (FF): 47
- Angle of view (S35): 34
-Weight: 500g
- Filter thread: M58 x 0.75

75mm

- Aperture: T2.4-T16
- Iris rotation: 78º
- Close focus: 800mm
- Focus rotation: 160º
- Length: 98mm
- Front diameter: 64mm
- Angle of view (FF): 32
- Angle of view (S35): 22
-Weight: 520g
- Filter thread: M58 x 0.75

100mm

- Aperture: T2.4-T16
- Iris rotation: 78º
- Close focus: 800mm
- Focus rotation: 160º
- Length: 124mm
- Front diameter: 82mm
- Angle of view (FF): 25
- Angle of view (S35): 17
-Weight: 690g
- Filter thread: M77 x 0.75
