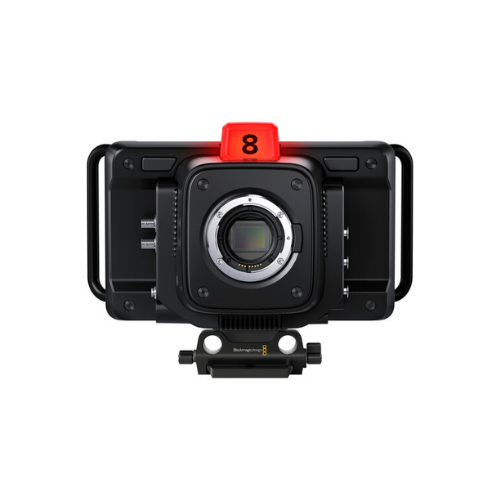

Blackmagic Design Studio Camera 6K PRO

Developed as the most advanced ultraportatile studio camera, it includes the features of the Studio Camera 4K Pro G2 model, plus a larger 6K sensor, EF lens fitting and remotely controllable ND filters

In the box:

- 1x pocket 6k pro brain
- 4x Battery NP
- 1x Power D-Tap Cable Coiled
- 1x Power Transformer
- 1x SSD Wise Support
- 1x VCTU-14 Plate
- 1x Handle Brace Bag
- 1x support Smallrig cables
- 1x top handle smallrig
- 1x side handle smallrig with six hex key
- 1x Cage Smallrig for 6k Pro with six hex key
- 1x Lanparte v-tount
- 1x Shoulder Rig 8Sinn
. 4x Rod 15mm
. Plate Manfrotto
. six hex key
- 1x Smallrig Stop sun

Camera Features:

- Effective Sensor Size: 23.10mm x 12.99mm (Super 35)
- Lens Mount: Active EF mount
- Lens Control: Iris, focus, zoom on supported lenses
- Dynamic Range: 13 Stops
- Dual Native ISO: 0dB and 18dB gain

- Sensitivity at 0dB Gain:
f11 with 2160p59.94.
f12 with 2160p50.
at 2,000 lux with 89.9% reflectance

- Signal to Noise Ratio
64.62dB for 2160p
Ultra HD scaled from 5.3K

- Recording Resolutions:
6144 x 3456 (6K) up to 50 fps
6144 x 2560 (6K 2.4:1) up to 60 fps
5376 x 3024 (5.3K 16:9) up to 60 fps
3840 x 2160 (Ultra HD) up to 60 fps

- Video Output Standards: 2160p, 1080p, 1080i

- Frame Rates:
Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported
Off-speed frame rates 5 ‑ 50 fps in 6K, and 5 ‑ 60 fps for all other recording resolutions

- Built in ND Filters: Four position ND filter with clear, 2‑stop, 4‑stop and 6‑stop IR ND filters

- Focus: Auto focus available using compatible lenses
- Screen Dimensions: 7 inch 1920 x 1200
- Screen Type: LCD capacitive touchscreen
- Screen Brightness: 2000 nits

- Controls:
Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials

- Mounting Options:
2 x 1/4 inch tripod mount.
1 x 3/8 inch tripod mount.


Connections:

- SDI Video Inputs: 1
- SDI Video Outputs: 1
- SDI Rates: 1.5G, 3G, 6G, 12G.
- HDMI 2.0 Video Outputs: 1

- Analog Audio Input:
2 x XLR analog switchable between mic and line levels. Phantom power support
1 x 3.5mm Stereo Input. Can also be used for Timecode input

- Analog Audio Output:
1 x 5-pin XLR for talkback headset
1 x 3.5mm TRRS mini jack for headphones with mic

- SDI Audio Output:
2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI
2 talkback channels on 15 and 16

- Reference Inputs: Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter
- Remote Control: Remote camera control over SDI, HDMI or Ethernet
- Ethernet: 10Gb/s
- Computer Interface: 2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A


- Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems


Storage Features:

- Storage Type: 2 x USB‑C 3.1 Gen 1 expansion ports for external media

- Recording Formats:
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in 6K (6144 x 3456), 6K 2.4:1 (6144 x 2560), 5.3K 16:9 (5376 x 3024), Ultra HD (3840 x 2160) at the selected frame rate
