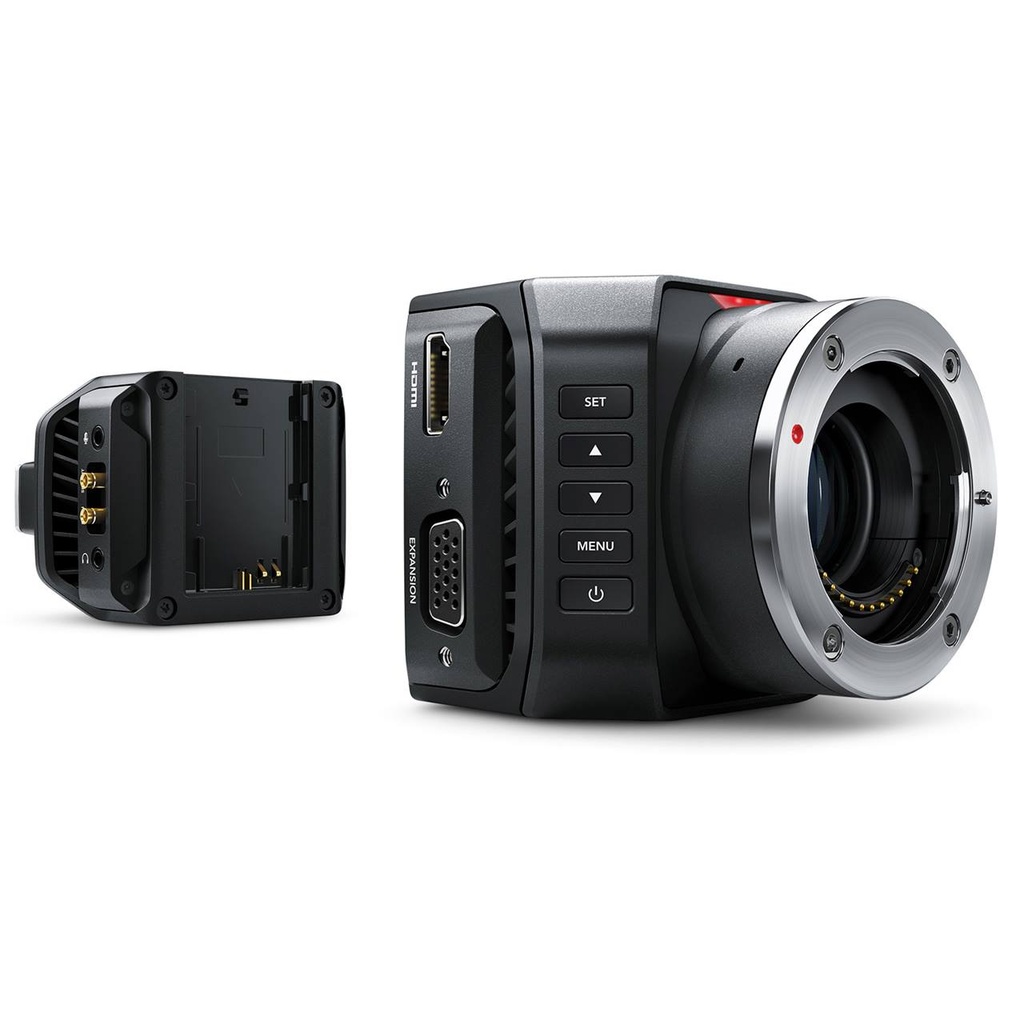

Blackmagic Design Micro Studio Camera 4K

In the box:

- 2x Blm Micro 4K
- 2x Small Ball Head
- 2x expansion cable
- 2x Transformer
- 2x dummy battery canon to dc power
- 1x cable d-tap to dc power
- 2x HDMI
- 2x Lumix Lens 14-42
- 2x Lumix 8mm lens
- 3x Lumix Lens 45-175 w/ Stop sun
- 4x BNC Union
- 2x ¼ converter to ⅜
- 5x SDI Cables - Micro SDI
- 2x cable sdi
- 1x USB Cable - Mini USB

Camera Features

- Effective Sensor Size: 17.78mm x 10mm (Four Thirds)
- Lens Mount: Active MFT Mount
- Lens Control: Iris, focus, zoom on supported lenses
- Dynamic Range: 13 Stops
- Dual Native ISO: 0dB and 18dB gain

- Sensitivity at 0dB Gain:

f11 with 2160p59.94.
f12 with 2160p50.
at 2,000 lux with 89.9% reflectance.

- Signal to Noise Ratio: 63dB for 2160p
- Shooting Resolutions: 3840 x 2160 (Ultra HD) up to 60 fps

- Frame Rates:

23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second
Off-speed frame rates up to 60 fps in Ultra HD

- Focus: Auto focus available using compatible lenses

- Mounting Options:

1 x 1/4 inch (top)
3 x 1/4 inch (bottom)


Connections:

- SDI Video Inputs: 1
- SDI Video Outputs: 1
- SDI Rates: 3G, 6G, 12G.
- HDMI 2.0 Video Outputs: 1

- HDMI Video Outputs:

1 x HDMI Type A output
HDMI output is always HD, up to 1080p60

- Analog Audio Input:

1 x 3.5mm Stereo Input. Can also be used for Timecode input

- Reference Inputs: Program SDI Input on camera

- SDI Audio Output: 2 channels of program audio embedded in 3G/6G/12G-SDI
- HDMI Audio Outputs: 2 channels 48 kHz and 24‑bit
- Remote Control: Remote camera control over SDI, HDMI or USB Ethernet with suitable adapter
- Computer Interface: 1 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port


Media Format:

Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems

Storage Features:

- Storage Type: 1 x USB‑C 3.1 Gen 1 expansion ports for external media.
- Recording Formats: Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate

- Storage Rates:

Storage rates based on 30 frames per second

3840 x 2160 (Ultra HD)
Blackmagic RAW 3:1 - 127 MB/s
Blackmagic RAW 5:1 - 77 MB/s
Blackmagic RAW 8:1 - 48 MB/s
Blackmagic RAW 12:1 - 32 MB/s
Blackmagic RAW Q0 - 96 to 190 MB/s
Blackmagic RAW Q1 - 64 to 153 MB/s
Blackmagic RAW Q3 - 43 to 109 MB/s
Blackmagic RAW Q5 - 26 to 64 MB/s
