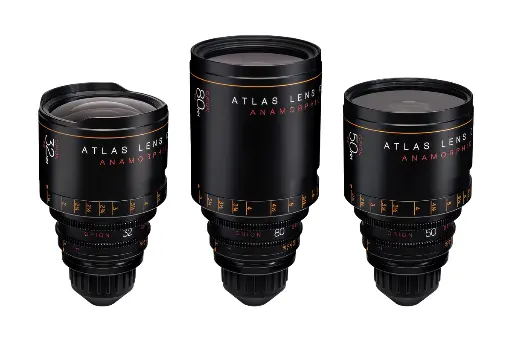

Atlas Lens Orion Series 2X Anamorphic set B 32/50/80 MM

Technical Specifications:

32mm:

- T-Stop Range: T2 - T16
- Min Focus (FT): 1.75 FT
- Min Focus (M): 0.53 M
- Weight: 2.1 Kg / 4.7 Lbs
- Length: 17 / 6.7“
- Front Diameter: 114 mm
- Image Circle: 31 mm
- Alexa Sensor Coverage: 4:3 ANA 23.76 x 17.89mm
- Red Sensor Coverage: Monstro 7K 6:5 ANA

50mm:

- T-Stop Range:
- Min Focus (FT):
- Min Focus (M):
- Weight:
- Length:
- Front Diameter:
- Image Circle:
- Alexa Sensor Coverage: 4:3 ANA 23.7 x 17.89mm
- Red Sensor Coverage: Monstro 8K 6:5 ANA

80mm:

- T-Stop Range: T2 - T16
- Min Focus (FT): 3 FT
- Min Focus (M): 0.91 M
- Weight: 2.7 Kg / 6 LBS
- Length: 32 mm / 8.5“
- Front Diameter: 114 mm
- Image Circle: 31 mm
- Alexa Sensor Coverage: 4:3 ANA 23.76 x 17.8mm
- Red Sensor Coverage: Monstro 8K 6:5 ANA

Characteristics:

- Waterfall bokeh
- Streak flare
- Disproportionate perspective magnification
- Pleasant spherical aberration glow when wide open
- Pleasing barrel distortion
- Crisp flat-field performance when stopped down to a T2.8 or deeper
- Fast T2 aperture
- Modern, mechanically dependable design
- Unified focus and iris position
- Standardized 114mm outer diameter for native use with a variety of matteboxes and filters

Accessory Compatibity:

- Atlas 1.6x LF Extender
- EF Mount Kit
- Lens Support Foot

Product Details:

- Interchangeable Mount System with native PL or EF mount options
- Works with E-mount or Micro 4/3 camera with appropriate adapters
- Covers full-frame (FF), large format (LF) or Vistavision with our 1.6x LF Extender
- Focus has a deep 270° travel rotation
- Cine pitch 0.8 mod gearing on both iris and focus ring allow for simultaneous drive control, even when two motors are mounted on the same side of the lens
