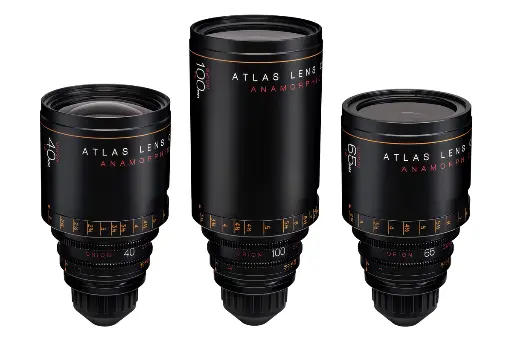

Atlas Lens Orion Series 2X Anamorphic set A 40/65/100 MM

Technical Specifications:

40mm:

- T-Stop Range: T2 - T16
- Min Focus (FT): 2 FT
- Min Focus (M): 0.56 M
- Weight: 2.4 Kg / 5.2 Lbs
- Length: 40 mm / 7.4“
- Front Diameter: 114 mm
- Image Circle: 31 mm
- Alexa Sensor Coverage: 4:3 ANA 23.76x17.89mm
- Red Sensor Coverage: Monstro 8K 6:5 ANA

65mm:

- T-Stop Range: T2 - T16
- Min Focus (FT): 2.75 FT
- Min Focus (M): 0.84 M
- Weight: 2.2 Kg / 5 Lbs
- Length: 40 mm / 7.2“
- Front Diameter: 114 mm
- Image Circle: 31 mm
- Alexa Sensor Coverage: 4:3 ANA 23.76x17.89mm
- Red Sensor Coverage: Monstro 8K 6:5 ANA

100mm:

- T-Stop Range: T2 - T16
- Min Focus (FT): 3.5 FT
- Min Focus (M): 1M
- Weight: 3 Kg / 6.7 LBS
- Length: 40 mm / 10“
- Front Diameter: 114 mm
- Image Circle: 31 mm
- Alexa Sensor Coverage: 4:3 ANA 23.76x17.89mm
- Red Sensor Coverage: Monstro 8K 6:5 ANA


Characteristics:

- Waterfall bokeh
- Streak flare
- Disproportionate perspective magnification
- Pleasant spherical aberration glow when wide open
- Pleasing barrel distortion
- Crisp flat-field performance when stopped down to a T2.8 or deeper
- Fast T2 aperture
- Modern, mechanically dependable design
- Unified focus and iris position
- Standardized 114mm outer diameter for native use with a variety of matteboxes and filters

Accessory Compatibility:

- Atlas 1.6x LF Extender
- EF Mount Kit
- Lens Support Foot

Product Details:

- Interchangeable Mount System with native PL or EF mount options
- Works with E-mount or Micro 4/3 camera with appropriate adapters
- Covers full-frame (FF), large format (LF) or Vistavision with our 1.6x LF Extender
- Focus has a deep 270° travel rotation
- Cine pitch 0.8 mod gearing on both iris and focus ring allow for simultaneous drive control, even when two motors are mounted on the same side of the lens
