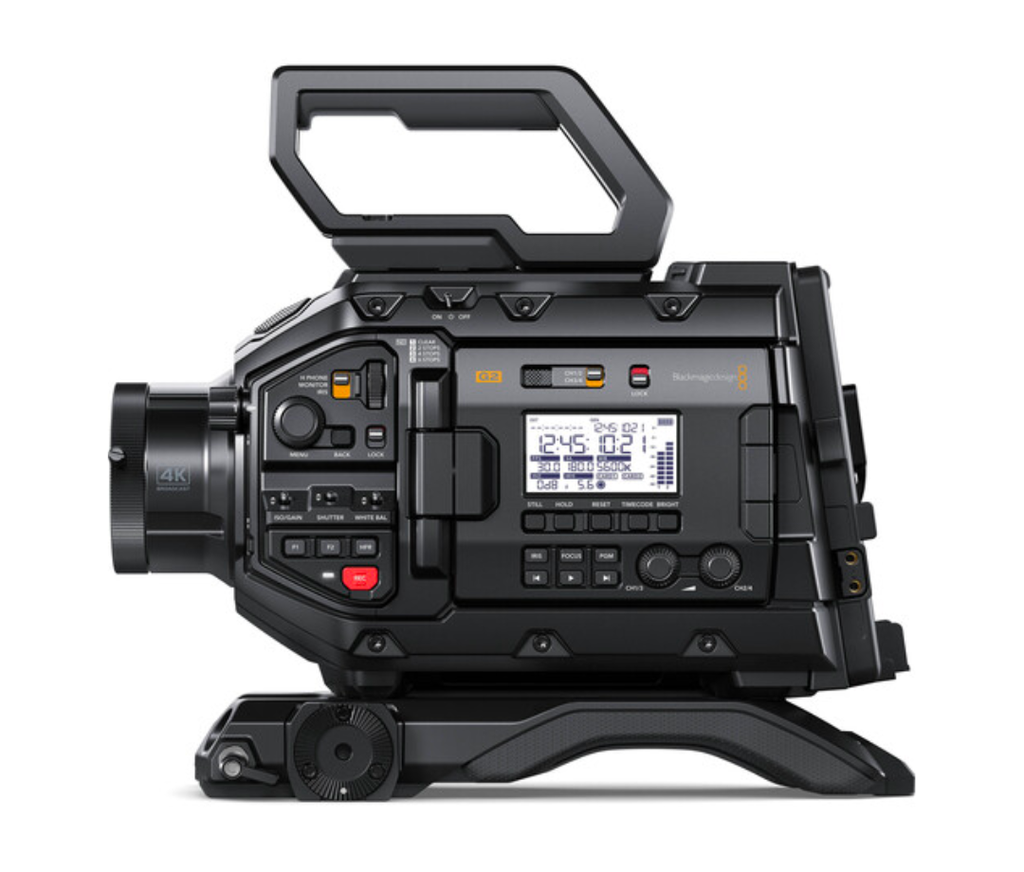

Blackmagic URSA Broadcast G2
In the box:
KIT A
1x BLM URSA G2
1x Top Handle
1x Shoulder Base
1x Lente FUJINON 8-128mm
2x Tampas lente/sensor
1x Viewfinder BLM URSA
1x CAbo Power IEC
1x Transformador
1x PLate VCT
1x Capa de chuva CAMRADE
20x Numeração do Viewfinder
1x Punho de Foco
2x USB C - USB C
2x Mounting Bracket
1x Punho ZOOM
1x Viewfinder óptico
KIT B
1x BLM URSA G2
1x Top Handle
1x Shoulder Base
1x Lente FUJINON 8-128mm
2x Tampas lente/sensor
1x Viewfinder BLM URSA
1x CAbo Power IEC
1x Transformador
1x PLate VCT
1x Capa de chuva CAMRADE
20x Numeração do Viewfinder
KIT C
1x BLM URSA G2
1x Top Handle
1x Shoulder Base
1x Tampa sensor
1x Viewfinder BLM URSA
1x CAbo Power IEC
1x Transformador
1x PLate VCT
20x Numeração do Viewfinder
1x Punho de Foco
2x USB C - USB C c/ aperto
2x Mounting Bracket
1x Punho ZOOM
Specifications:
- Effective Sensor Size:
2/3 inch sensor size when using 4K B4 mount
(Actual sensor size 23.10mm x 12.99mm)
- Lens Mount:
B4 2/3 inch installed
Active EF mount also included
- Lens Control:
Electronic control via 12-pin broadcast connector. Control via EF mount pins when using URSA Mini Pro EF Mount with compatible EF lenses.
- Lens Correction:
In-camera correction of color fringing when using compatible broadcast lenses.
- Dynamic Range: 13 Stops
- Dual Native ISO: 0dB and 18dB gain.
- Sensitivity at 0dB Gain:
f11 with 2160p59.94.
f12 with 2160p50.
at 2,000 lux with 89.9% reflectance.
additional 1.1 stop light loss using 4K B4 mount.
- Signal to Noise Ratio:
64.62dB for 2160p
Ultra HD scaled from 5.3K
- Built in ND Filters: Four position ND filter wheel with clear, 2 stop, 4 stop and 6 stop ND filters.
- Focus:
Focus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus.
- Iris Control:
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video and extended video mode.
- Screen Dimensions: 4 inch
- Screen Type: LCD capacitive touchscreen.
- Controls:
Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys and 2 assignable shortcut keys (VTR and RET) on compatible broadcast lenses.
- ProRes Shooting Resolutions and Frame Rates:
3840 x 2160 (Ultra HD) up to 60 fps
from Ultra HD window or scaled from 5.3K
windowed sensor
3840 x 2160 (Ultra HD) up to 50 fps
scaled from full sensor
1920 x 1080 (HD) up to 120 fps
scaled from 2.7K windowed sensor
1920 x 1080 (HD) up to 60 fps
scaled from Ultra HD or 5.3K
windowed sensor
1920 x 1080 (HD) up to 50 fps
scaled from full sensor
- H.265 Shooting Resolutions and Frame Rates:
3840 x 2160 (Ultra HD) up to 60 fps
from Ultra HD window or scaled from 5.3K
windowed sensor
3840 x 2160 (Ultra HD) up to 50 fps
scaled from full sensor
- H.264 Shooting Resolutions and Frame Rates:
1920 x 1080 (HD) up to 60 fps
scaled from Ultra HD or 5.3K windowed sensor
1920 x 1080 (HD) up to 50 fps
scaled from full sensor
- Blackmagic RAW Shooting Resolutions and Frame Rates:
6144 x 3456 (6K) up to 50 fps
6144 x 2560 (6K 2.4:1) up to 60 fps
5376 x 3024 (5.3K 16:9) up to 60 fps
3728 x 3104 (3.7K 6:5 anamorphic) up to 60 fps
3840 x 2160 (Ultra HD) up to 60 fps
1920 x 1080 (HD) up to 150 fps
- Project Frame Rates:
23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps.
Off-speed frame rates up to 60p in Ultra HD and up to 150p in HD.
